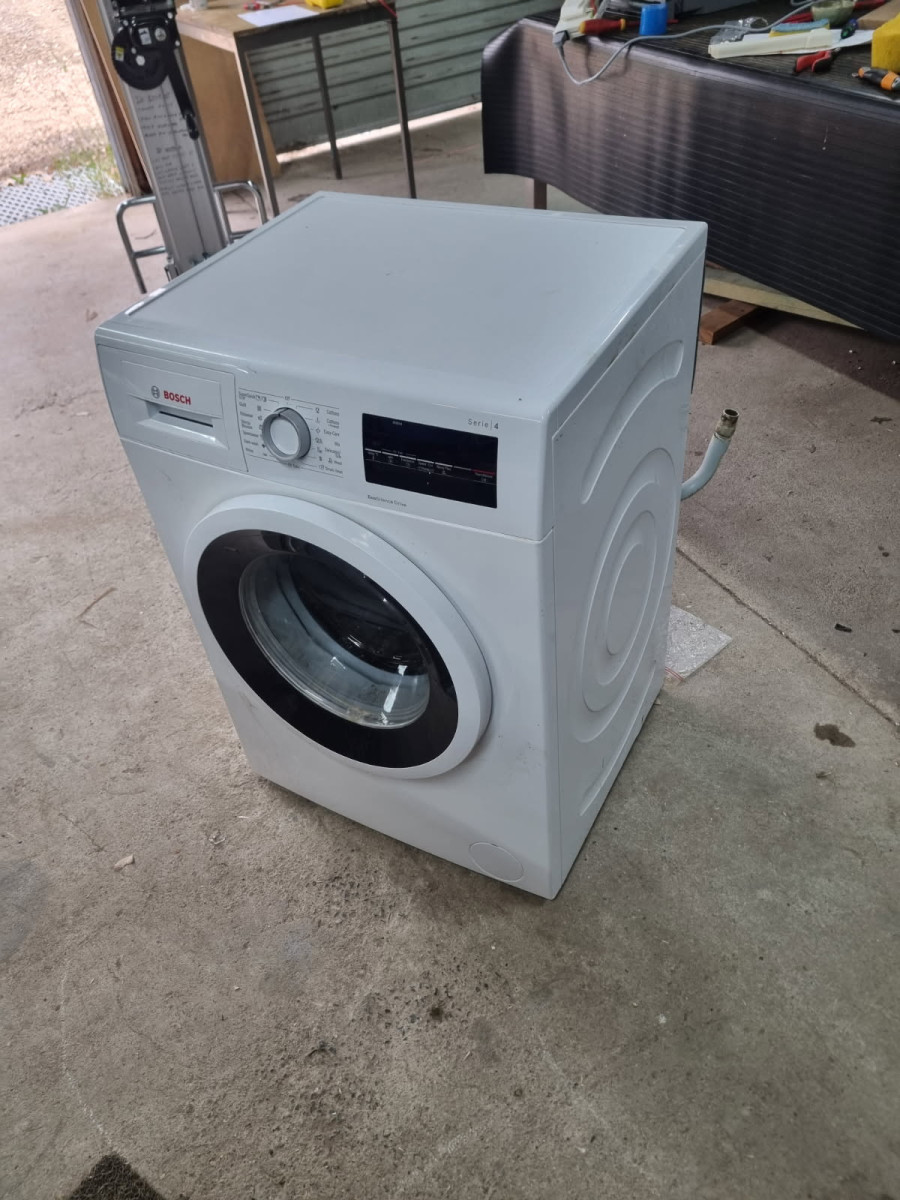

Bosch Series 4 Washing Machine Tripping Circuit Breaker

Overview of the Issue

A customer in Armidale contacted John Crawford Appliance Repairs after their Bosch Series 4 washing machine began tripping the household circuit breaker as soon as the machine was dialled on. This type of fault can indicate a serious internal electrical issue and requires accurate diagnosis.

Initial Assessment

At first inspection, the symptoms pointed toward a potential fault with one of the machine’s printed circuit boards. Modern Bosch washing machines often contain multiple boards, and identifying the faulty one is not always straightforward. In many cases, this can lead to the appliance being considered beyond economical repair due to the cost of replacement parts.

Detailed Fault Finding

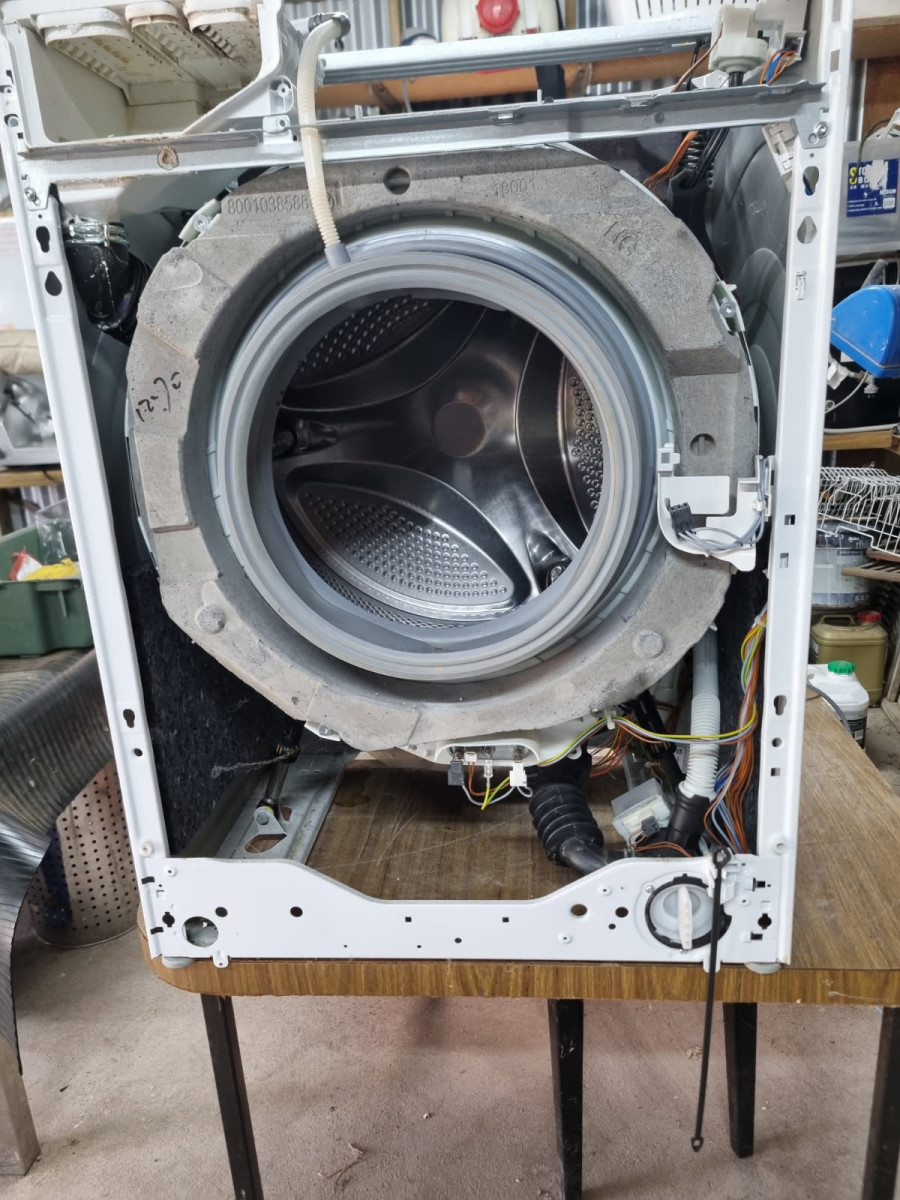

With over 30 years of experience, John carried out a systematic diagnostic process. The appliance was carefully dismantled and key components were individually tested rather than making assumptions based on initial symptoms.

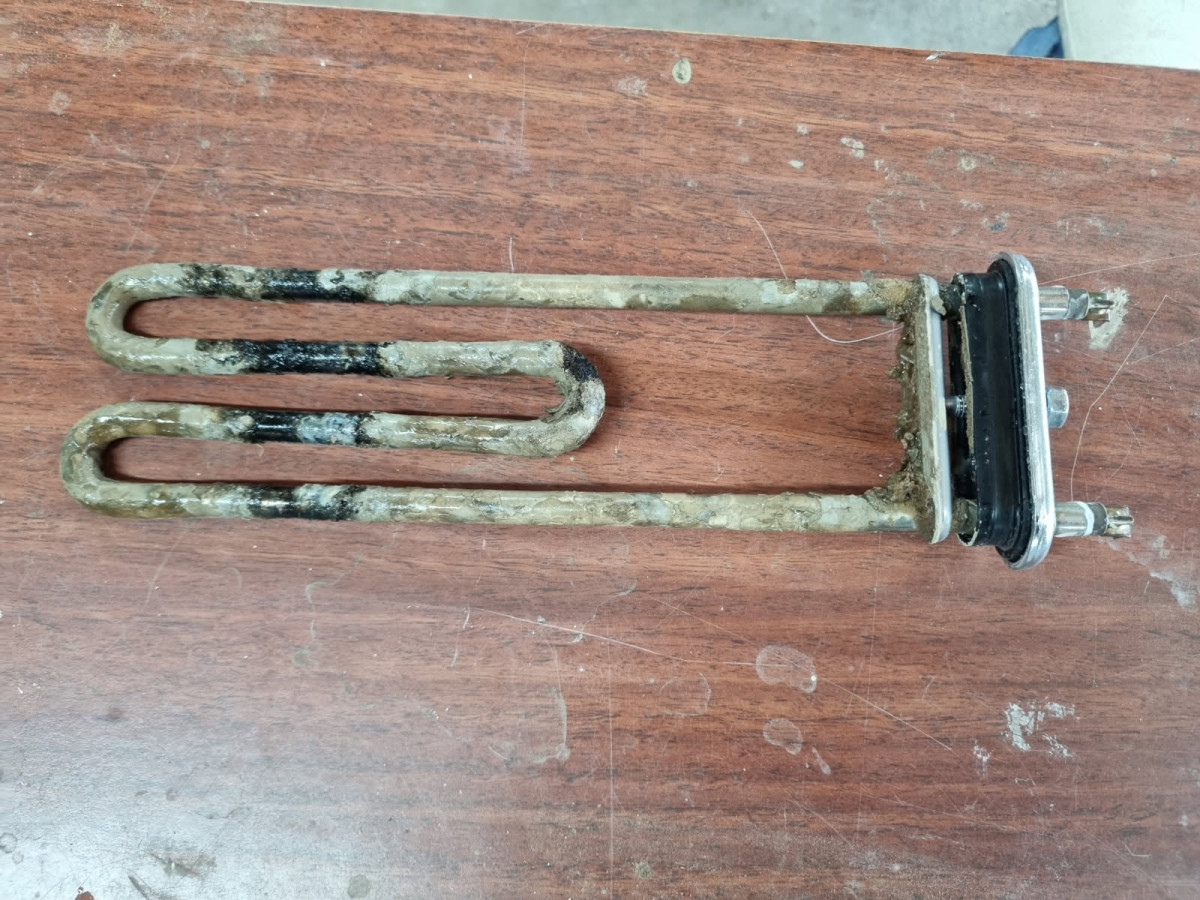

The fault was ultimately traced to a shorted heater element. This was an unexpected result, as the heating system is not typically required at the initial startup phase.

Why the Machine Tripped Immediately

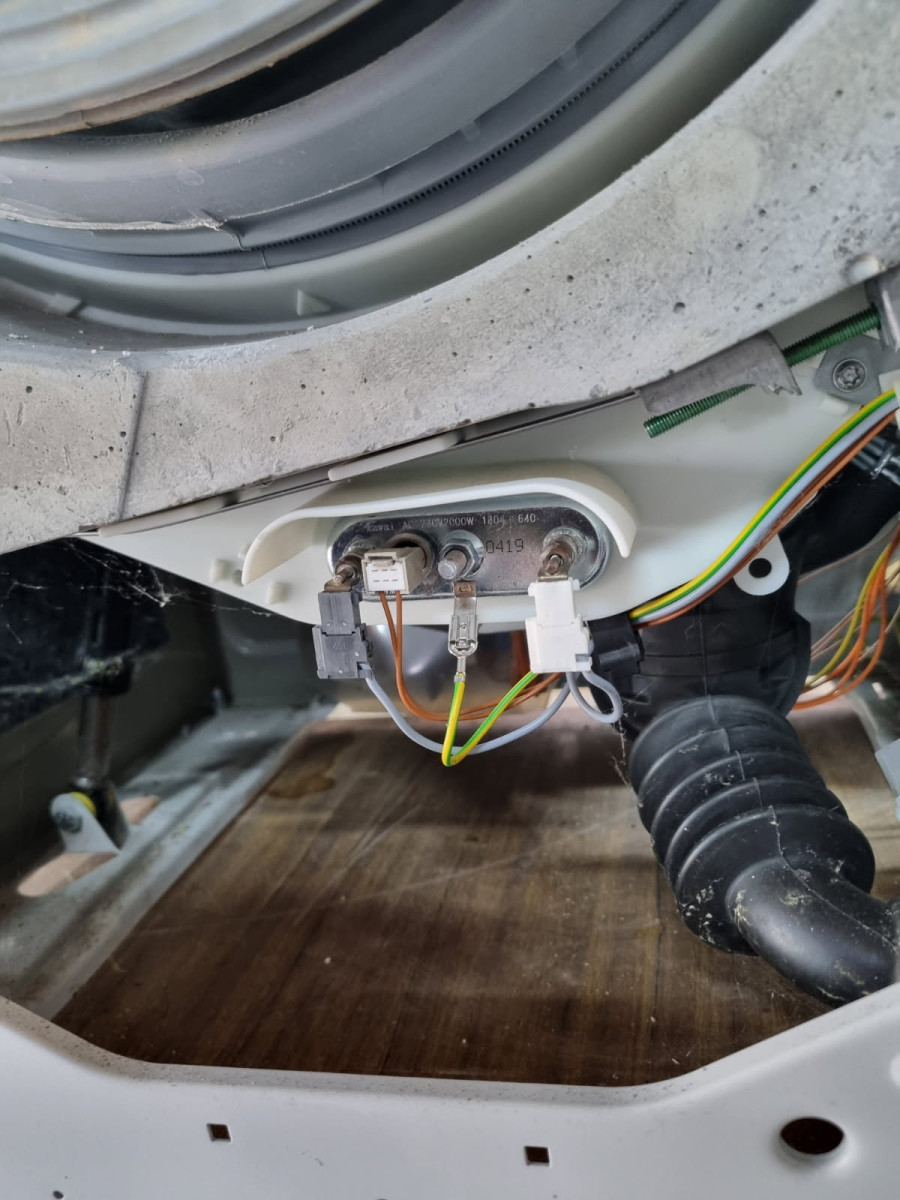

In this Bosch Series 4 design, power is supplied to the heating element as soon as the main dial is turned on. The switching occurs on the neutral side rather than the active side, meaning components can still be live even before heating begins.

This wiring arrangement highlights why appliance repairs can be dangerous for unqualified individuals. Live electrical components may still be energised, creating a serious risk of electric shock if handled incorrectly.

Repair Outcome

Once the faulty heater element was replaced, the washing machine operated normally again with no further circuit breaker issues. This targeted repair avoided unnecessary replacement of expensive control boards and restored full functionality.

Trusted Appliance Repairs in Armidale

This project demonstrates the value of accurate fault finding and experience. What initially appeared to be a major and costly issue was resolved efficiently with the correct diagnosis.

John Crawford Appliance Repairs provides reliable washing machine repairs across Armidale and the New England region, specialising in complex fault diagnosis, servicing, and cost-effective appliance repairs.
